Legacy Flood Barrier for Doors & Windows

Simple, Reliable, Cost-Effective!

Request a Quote
Legacy flood barriers

Legacy Flood Barrier for Doors & Windows Flood Barrier Design

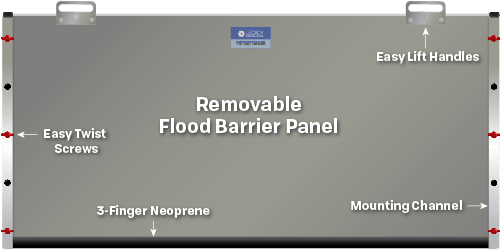

This system is comprised of aluminum alloy panels fitted with solid neoprene 3-Finger Rubber seals at the bottom for a good seal to the ground.


Panels slide into pre-mounted ¾” aluminum alloy rails or ‘mounting channel’ fitted with internal sponge neoprene strips and Allen head tightening screws to further ensure water-tight seals.

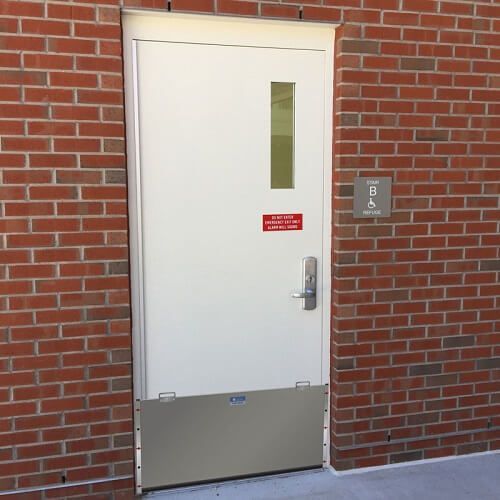

The Legacy Flood Panel is used to protect doors and window from flooding

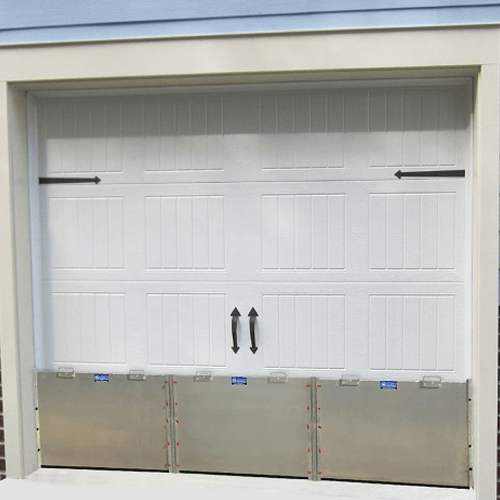

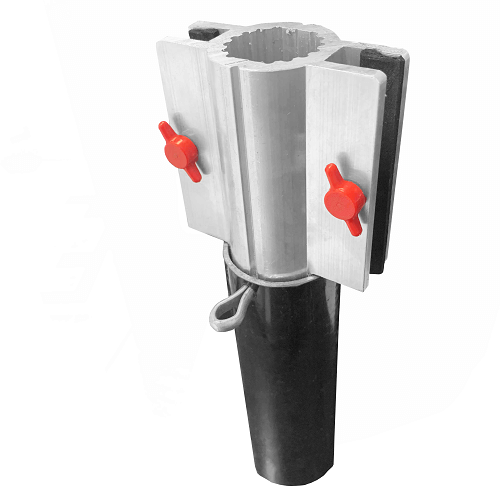

Upright post assembly that is used for connecting multiple flood panels together when trying to protect a garage from flooding.

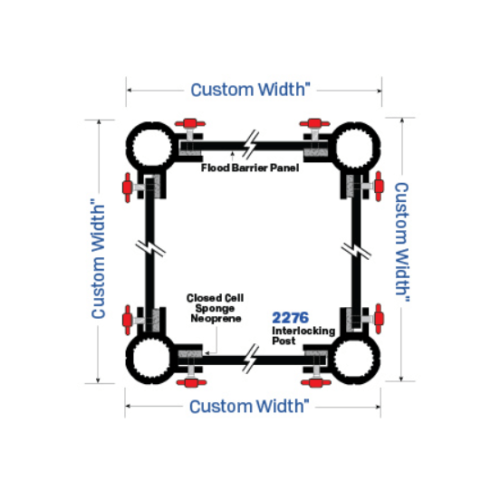

For openings greater than 48”, ground support posts can be installed for spanning longer distances with multiple panels.

Ground thresholds can be used to create a better seal from flood water if working surfaces are rough.

Optional ‘threshold kick plates’ can be installed below the panels if working on rough or porous surfaces to a create a better seal.

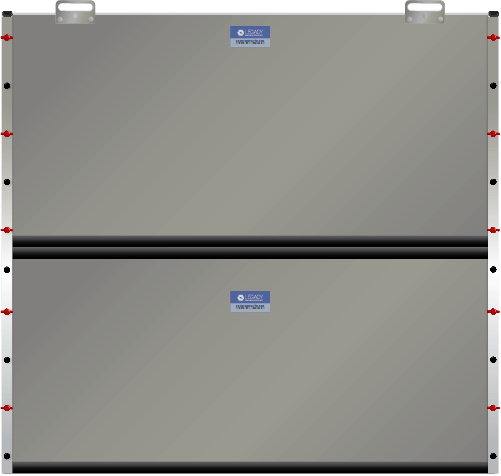

Stackable – This barrier is also stackable which can reduce individual panel weight and allows you to create additional height of flood protection as flood projections dictate

This system allows flood panels to be stacked if it is necessary to protect a door from several feet of floodwater.
